Understanding Septic Tank Baffles to Spot Issues Before They Damage Your Drain Field

If your home has a septic system, the septic tank baffle is one of those hidden parts that can cause outsized trouble when it clogs, crumbles, or goes missing. Most homeowners never think about it until something else starts going wrong: drains slow down, toilets gurgle, odors show up, or the yard near the drain field starts looking wetter or greener than it should.

If it is ignored long enough, it can become a drain-field problem instead.

The good news is that baffle trouble is often discoverable during routine septic maintenance. You do not need to become a septic designer or wastewater engineer to understand the basics. You just need to know what the inlet and outlet baffles are supposed to do, what failure tends to look like, and where the sensible homeowner line ends and professional septic work begins.

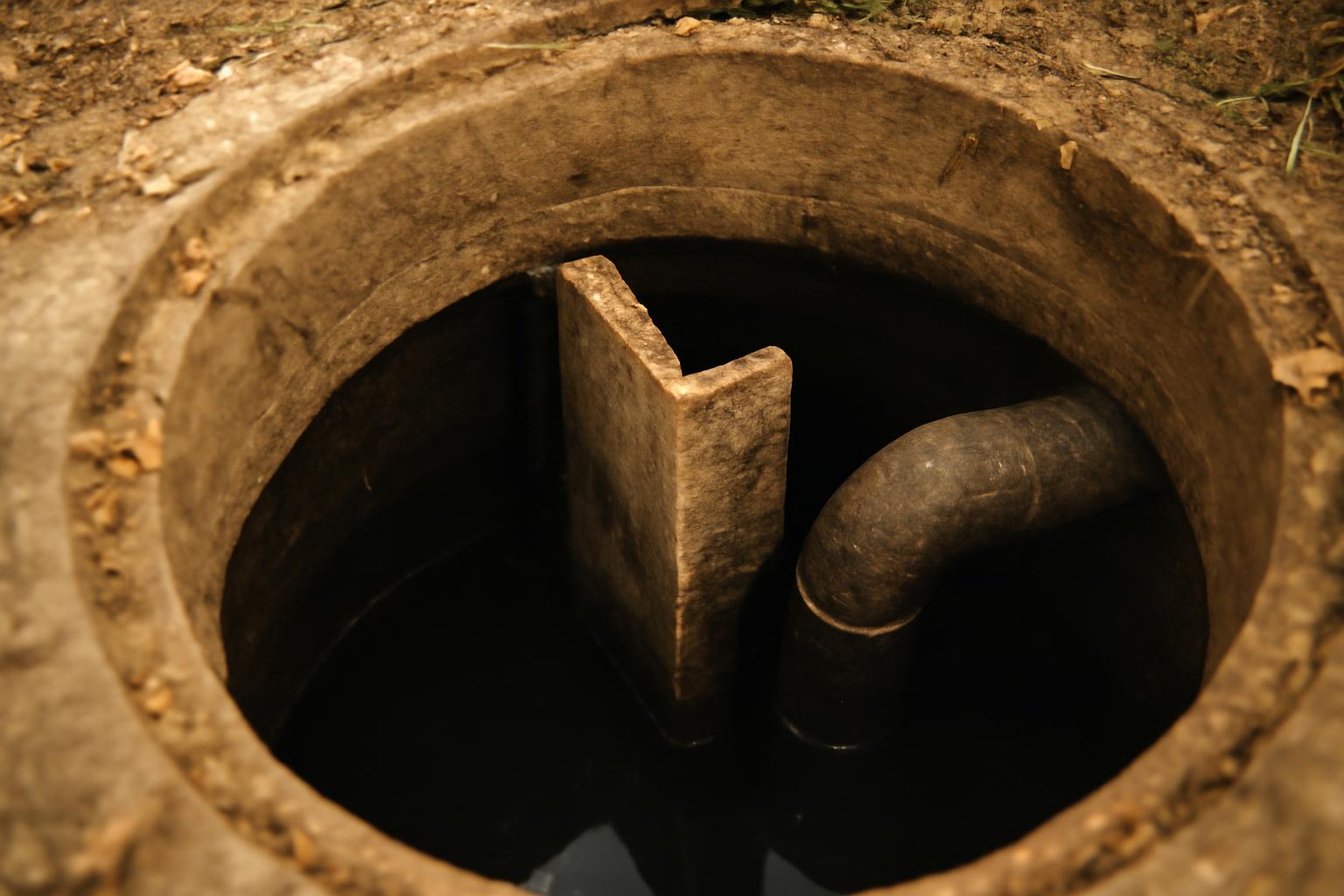

What Is a Septic Tank Baffle?

A septic tank baffle is an internal flow-control feature at the point where wastewater enters the tank, leaves the tank, or both. Standards-oriented septic guidance describes baffles broadly as devices that retain solids inside the tank; in many modern systems, that means sanitary tees at the inlet and solids-protective outlet assemblies rather than a simple cast concrete wall. Most residential tanks are commonly described as having an inlet feature and an outlet feature serving those jobs (Onsite Installer).

For a homeowner, the easiest way to picture a septic tank baffle is this: it makes wastewater take the right path through the tank instead of shooting straight across. That matters because a septic tank only works when flow is slowed enough for separation to happen. Heavy material settles to the bottom as sludge. Grease, oils, and other lighter material float to the top as scum. The relatively clearer liquid between those layers is what should move onward through the system.

That is why the baffle matters even though you almost never see it. It is not a minor accessory. It is part of the basic mechanism that helps the tank keep solids where they belong. When flow is not controlled, incoming surges can disturb the layers the tank depends on, floating scum can drift too close to the outlet, and suspended solids can remain in motion when they should have settled.

It also helps to keep one qualifier in mind. Home septic systems vary. Some older tanks have cast concrete forms. Some newer systems use plastic tees. Some have outlet filters. Some older or locally built tanks may not look like the diagrams homeowners find online. That variation is normal. The key question is not whether your tank matches a textbook drawing. The key question is whether the inlet and outlet still direct flow and retain solids the way they are supposed to.

Inlet Baffle vs. Outlet Baffle: Key Differences

The inlet baffle and outlet baffle work together, but they do not do the same job.

At the inlet, the goal is to guide wastewater downward below the liquid surface so it enters the tank more gently. Septic service guidance consistently describes the inlet side as the feature that reduces turbulence, protects the scum layer from being churned up, and helps wastewater travel a longer path through the tank so separation has time to occur (Skips Wastewater).

At the outlet, the job changes. The outlet side acts as the tank’s last internal checkpoint before effluent moves toward the drain field. Standards-oriented guidance describes the modern outlet arrangement as a sanitary tee often paired with an effluent screen so larger solids are not allowed to move downstream into the soil treatment area (Onsite Installer).

That difference matters when you are trying to make sense of symptoms:

• Outlet-side trouble matters most for drain-field protection because it is the last barrier keeping scum and solids from leaving the tank.

Many newer outlet setups also include an effluent filter. That does not replace the baffle’s job. It adds another layer of protection. In plain language, the baffle or tee helps manage flow and keep floating scum away from the outlet opening, while the filter catches smaller suspended material before it leaves the tank.

For homeowners, the shortest useful summary is this: the inlet baffle protects the tank from the force of incoming wastewater, while the outlet baffle protects the drain field from material that should have stayed in the tank. Both matter.

Common Signs Your Septic Tank Baffle May Be Failing

A bad septic tank baffle rarely announces itself with one unmistakable symptom. What you usually see are broader septic-system symptoms, and those symptoms overlap with other failures. That means symptoms are best used to decide what should be inspected first, not to diagnose the cause with certainty from the surface.

On the inlet side, the early clues are often house symptoms: slow drains across several fixtures, gurgling sounds, sewage odors, or backups when the entry area becomes obstructed. Guidance focused specifically on inlet baffle clogs lists gurgling, slow drains, sewage smells, and backups among the common early signs homeowners notice (Soils Inc.).

On the outlet side, the warning signs tend to show up farther from the house. Missing or failed outlet protection is commonly associated with odors outdoors, unusually lush grass, wet or soggy patches, pooling near the field, and backups if the downstream side becomes overloaded (Van Delden Wastewater Systems).

One of the strongest clues is not a yard symptom at all. It is what a septic contractor sees when the tank is opened and pumped. If the technician reports a deteriorated outlet tee, a missing baffle, broken concrete, a clogged inlet, or evidence that solids have moved beyond the tank, that is much more useful than trying to infer the condition from the yard or the bathroom alone. Service guidance on baffle failure specifically identifies solids getting beyond the tank as a sign that the tank is no longer retaining material properly (Wholesale Septic Supply).

For practical homeowner use, it helps to think in symptom clusters rather than single signs:

The escalation thresholds are fairly straightforward. Put baffles high on the inspection list when the tank is being pumped, and move faster if a baffle is reported missing, crumbling, heavily clogged, or if solids are seen beyond the tank. If symptoms are showing up both in the house and near the field, the issue has moved beyond casual guesswork. And if the discussion is already turning to field damage, it helps to understand broader drain field replacement considerations before assuming full replacement is the only outcome.

The important caution is that symptom patterns are clues, not proof. Slow drains do not automatically mean an inlet baffle clog. Wet ground near the field does not automatically prove outlet failure. But baffles are small enough to be overlooked and important enough that overlooking them can let a tank problem become a much larger site problem.

What Causes Septic Tank Baffles to Fail?

Baffles usually fail for repeatable reasons: deterioration, clogging, physical damage, bad fit or installation, and neglected maintenance.

In older tanks, deterioration of concrete is a common failure mode. Service sources repeatedly describe concrete baffles as vulnerable to the corrosive environment inside a septic tank, especially on the outlet side.

Clogging is especially common at the inlet because that is where everything from the house arrives first. Guidance focused on inlet baffle clogs repeatedly points to wipes, feminine products, paper towels, scum and sludge buildup, and skipped pumping as the everyday causes homeowners are most likely to encounter. In other words, the inlet is often where bad flushing habits first become a mechanical problem.

Skipped maintenance accelerates everything. When sludge and scum build up too far, the baffles have less room to do their job. The inlet becomes easier to obstruct. The outlet sits closer to floating scum. Suspended solids are more likely to be carried where they do not belong. A neglected tank does not just make baffle failure more likely; it makes baffle failure more damaging.

Material choice changes the likely failure mode, but it does not remove the need for maintenance. Older tanks often have concrete forms. Many repair crews now retrofit deteriorated concrete with PVC or ABS tee-style parts because those materials are commonly described in service guidance as more resistant to the corrosive tank environment than older concrete pieces. That still does not make plastic permanent.

For homeowners, the most useful takeaway is not the exact chemistry of baffle failure. It is that baffle trouble usually has a recognizable chain behind it: age, corrosive conditions, poor household disposal habits, delayed pumping, or a prior repair that did not fully solve the underlying problem.

How to Inspect Septic Tank Baffles as a Homeowner

For most homeowners, the best time to inspect septic tank baffles is when the tank is already being pumped. That is when the access is open, the contents are being removed, and the inlet and outlet areas can be seen more clearly. Homeowner-oriented guidance specifically recommends checking the inlet and outlet for cracks, corrosion, clogs, damage, and filter condition while the tank is open and accessible (HomeServe).

Before scheduling pumping, learn how to find a buried septic tank if the location is unknown.

If you are present during that visit, your job is not to perform a full diagnosis yourself. Your job is to observe what can be observed safely and ask better questions.

A homeowner checklist helps:

• Is there clearly an inlet baffle or sanitary tee where the house line enters?
• Is there clearly an outlet baffle or tee where effluent leaves for the field?
• Do either of them look cracked, crumbling, disconnected, heavily coated, or partly missing?
• If there is an outlet filter, is it present and obviously fouled?
• Is the scum layer sitting unusually high around the outlet area?
• Did the pumper report evidence that solids have been getting past the outlet?

Those are useful observations because they stay on the safe side of the line. You are documenting visible condition, not trying to engineer the repair.

It is also worth separating safe-to-observe items from professional-only evaluation:

Safe for most homeowners to observe

• Whether an inlet or outlet tee is visibly present
• Obvious crumbling concrete
• Heavy blockage at the opening
• Whether a removable outlet filter appears present
• What the pumper reports after pumping

Usually not reasonable to judge alone

• Whether tee depth and orientation are correct for the tank design
• Whether the assembly matches local code or repair standards
• Whether solids carryover has already impaired the drain field
• Whether the visible defect is the root cause instead of just one symptom

A flashlight can help with a limited visual check. Public-agency homeowner inspection guidance notes that some systems allow you to see whether baffles are visible above the scum layer and whether scum is covering the area where the baffle should be. But a limited top-down view is still a limited view.

Safety is the hard limit. Inspecting or maintaining a septic system can expose homeowners to infectious waste, hazardous gases, falls, and electrical shock, and public-health guidance says to stop and hire a licensed professional if you are not confident you can do the work safely (Washington State Department of Health).

A few practical questions can make a pumping visit much more valuable:

• “Are both inlet and outlet baffles present and intact?”
• “Is the outlet tee deteriorated, or just dirty?”
• “Is there an effluent filter, and does it need cleaning?”
• “Did you see evidence of solids carryover beyond the tank?”
• “Does anything here need repair now, or just monitoring at the next service?”

That kind of conversation turns routine pumping into routine screening for one of the most consequential small-part failures in the system.

Septic Tank Baffle Materials and Designs

Homeowners often picture a septic tank baffle as a chunk of concrete hanging inside the tank. That image is not wrong, but it is incomplete.

Older tanks often use concrete baffles cast into the tank or formed around the pipe openings. Many newer systems and many repairs use PVC or ABS sanitary tees instead. In homeowner guidance, the modern version is often described as a tee-shaped fitting that extends below the liquid level while still leaving venting space above.

This is one reason septic terminology gets muddy in the field. A contractor may say baffle, tee, sanitary tee, outlet tee, baffle tee, filter housing, or effluent filter, and a homeowner may hear all of that as the same thing. They are related, but they are not identical.

In plain language:

• The baffle or tee helps control the flow path and keep scum and solids away from the pipe opening.
• The effluent filter or screen is an added outlet component that catches smaller suspended material before it leaves the tank.
• A modern outlet assembly may combine the tee and filter housing so closely that homeowners experience them as one unit.

Design also varies by tank style. A single-compartment tank may simply have inlet and outlet hardware. A multi-compartment tank may also have crossover features between chambers. Some systems use simple tees. Some use tees plus removable filters. Some older tanks rely on built-in concrete forms rather than replaceable plastic parts.

The practical lesson is not that one homeowner needs to memorize every septic design variation. It is that different-looking parts can serve the same function. If one tank has rough concrete forms and another has white plastic tees with a removable cartridge, both can still be doing the same basic work: slowing the flow path, preserving separation inside the tank, and protecting the line to the drain field.

Function is what matters. Does the inlet direct wastewater calmly downward? Does the outlet keep scum and solids from leaving? Is the filter, if present, actually maintained? Once you understand those questions, the design differences become much less confusing.

Replacing a Septic Tank Baffle: Process Overview

When a septic tank baffle is broken, missing, or too deteriorated to work, replacement usually follows a familiar pattern: the tank is pumped, the failed component is exposed, and a replacement tee-style part is fitted to the existing inlet or outlet line. Septic repair guides commonly describe retrofitting deteriorated concrete baffles with PVC tee assemblies rather than rebuilding the old concrete form (Skips Wastewater).

That broad description sounds simple. The details are not.

It also has to sit at the right depth and orientation so it directs flow properly and does not become a new obstruction. On the outlet side, the contractor may also recommend adding an effluent filter if the system does not already have one and the setup allows it.

This is where homeowners sometimes underestimate the job. Replacing a septic tank baffle is not usually a matter of lowering any convenient tee into the opening and declaring victory.

A good homeowner question is not just, “Can you replace the baffle?” It is, “Are you also checking why it failed?”

That distinction matters. If the inlet clogged because the household is flushing wipes and the tank is overdue for pumping, a new part alone is not much of a fix. If the outlet tee failed after years of deterioration, the new tee may solve the immediate tank problem, but the contractor still needs to assess whether solids have already moved farther downstream.

For that reason, the replacement conversation should usually include questions like these:

• Is the old part deteriorated, clogged, cracked, or missing?
• Are you replacing it with a tee-style assembly?
• Does the outlet side already have an effluent filter?
• Do you see signs that solids have moved beyond the tank?
• What else should be corrected so this does not happen again?

That keeps the discussion where it belongs: not just on the broken part, but on the condition of the system the part serves.

DIY Limits and When to Call a Professional for Baffles

A homeowner can stay involved in a septic tank baffle problem without trying to become the repair crew.

The reasonable DIY role is mostly observational. Review maintenance records. Notice symptom patterns. Be present when the tank is pumped. Ask whether the inlet and outlet protection are intact. Take photos if the technician allows it. If your system has an outlet filter and your local rules and service guidance allow homeowner maintenance, learn exactly how your contractor wants that filter monitored or cleaned.

If a baffle is reported missing or crumbling, if the outlet filter is heavily fouled, if solids have moved beyond the tank, or if symptoms are showing up both indoors and near the field, the issue has crossed out of simple observation and into professional evaluation.

That threshold is worth respecting because septic problems are expensive not only when they are severe, but when they are misread. A homeowner may see one symptom and assume a simple clog when the real problem is a failing tee, a blocked filter, an overfull tank, or drain-field stress.

There is also a hard safety and legal boundary. Public-health guidance warns that septic inspection and maintenance can expose homeowners to sewage-borne infection risks, hazardous gases, falls, and electrical hazards, and it states that septic repairs require a permit from the local health jurisdiction and must conform with applicable public-health codes (Washington State Department of Health).

If you want a clear homeowner framework, use this:

• Observe when the tank is already being serviced.
• Document visible condition and symptom timing.
• Ask for a direct report on inlet, outlet, and filter condition.
• Escalate when the issue is no longer just observation.

That is not overcautious. With septic baffles, the cheap mistake is waiting because the part seems too small to matter. The expensive mistake is learning later that a small hidden failure was the only thing standing between normal tank function and a stressed drain field.

FAQ About Septic Tank Baffles

If you only need the quick answers, these are the homeowner questions that come up most often.

Do all septic tanks have baffles?

No. The safest homeowner answer is that most residential septic tanks are commonly described as having inlet and outlet baffles or tee-style equivalents, but designs vary and some older or local installations may not match that pattern.

How often should I check septic tank baffles?

The practical answer is: check them whenever the tank is pumped. That is the moment when the system is already open and the inlet, outlet, and any outlet filter can be examined without creating a separate access visit.

What happens if a baffle is missing?

A missing baffle means wastewater moves through the tank with less control than intended. At the inlet, that can mean more turbulence and more disturbance of the normal scum and sludge layers. At the outlet, it removes an important barrier that helps keep scum and solids out of the line to the drain field. The result is a higher risk of odors, backups, and downstream clogging.

Are effluent filters the same as baffles?

No. They work together, but they are not the same part. The baffle or sanitary tee helps direct flow and keep floating scum and solids away from the opening. The effluent filter is an added screening element on the outlet side that catches smaller suspended material before it leaves the tank.

Can concrete baffles be replaced with plastic?

Often, yes. Septic repair guidance commonly describes deteriorated concrete baffles being retrofitted with PVC or other plastic tee-style replacements rather than rebuilt in concrete. Whether that is appropriate for your tank still depends on fit, condition, and local repair requirements.

If you are dealing with slow drains, gurgling, sewage odor, wet spots outside, or a pumper’s report of a deteriorated or missing baffle, put baffle condition high on the inspection list. And if the next step would require repair, removal of damaged parts, or close work around an open tank, that is usually the moment to stop observing and bring in a qualified septic professional.
