What Your Septic D-Box Does—and How to Make the Right Repair Decision

A distribution box for a septic system is easy to overlook because it is small, buried, and usually accessed only when something has gone wrong. Yet in many gravity systems, this junction determines how septic-tank effluent reaches individual drain-field laterals. If the box shifts, becomes obstructed, cracks, or has outlets at unsuitable elevations, one section of the field may receive much more wastewater than another.

Wet grass, odors, slow drains, and backups do not prove that the distribution box has failed. Similar symptoms can originate in household plumbing, the septic tank, the pipe leaving the tank, the D-box, individual laterals, or the soil absorption area. The right response is to evaluate the complete flow path before authorizing either a targeted repair or an expensive drain-field replacement.

The same caution applies when shopping. A distribution box that looks right or has the expected number of openings may still be incompatible with the approved design, pipe elevations, site conditions, or local rules. Product selection should begin with the property’s records and a verified diagnosis—not a retailer filter.

This guide provides general homeowner information. Septic designs, approved products, permit requirements, and permitted repair methods vary by jurisdiction and property.

What a septic distribution box is and where it fits

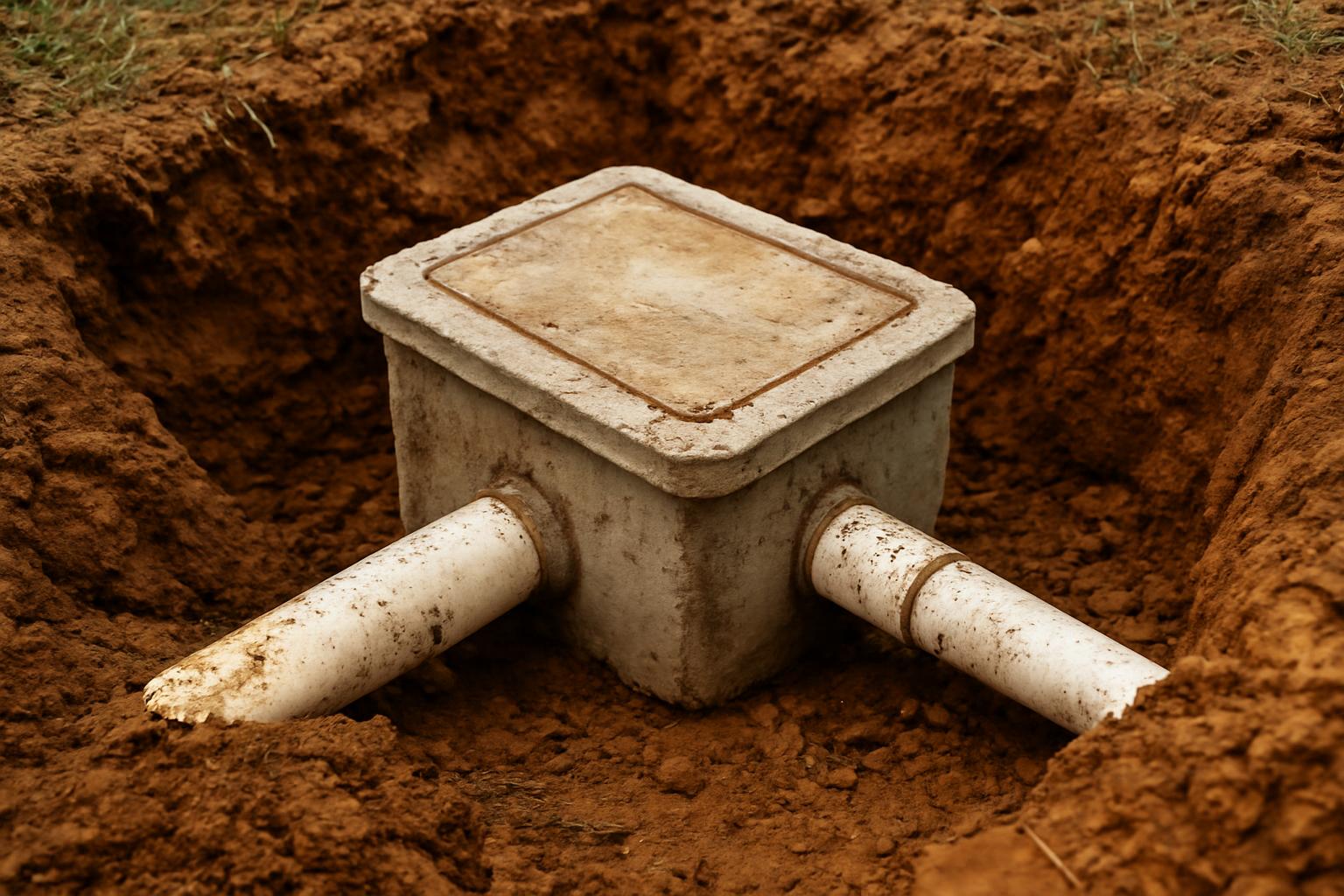

A septic distribution box, commonly shortened to D-box, is a buried junction usually found after the septic tank and before the drain field. In a conventional gravity arrangement, it receives liquid effluent from the tank and divides that flow among two or more drain-field laterals.

The basic path is:

1. Wastewater leaves the house and enters the septic tank.
2. Heavier solids settle while lighter material forms a floating layer.
3. Liquid effluent between those layers exits the tank.
4. The effluent travels through a connecting pipe to the D-box.
5. The box directs it into outlet pipes serving the drain-field laterals.
6. The laterals release effluent into the surrounding absorption area.

The D-box is therefore neither the septic tank nor the drain field. The tank separates and retains solids. The D-box divides the outgoing liquid. The drain field disperses that liquid into suitable soil.

Gravity septic systems typically use a D-box, but “typically” is important: not every gravity configuration necessarily has a conventional box, and not every septic system distributes effluent by gravity. Pressure-distribution systems use a pump to move wastewater through a designed network rather than relying on an ordinary passive D-box. The Washington State Department of Health’s overview of gravity and pressure-distribution systems illustrates why the system type must be confirmed before a component is selected.

HOUSE
  │
  │ House sewer
  ▼
┌─────────────────┐
│   SEPTIC TANK   │
│ solids retained │
└────────┬────────┘
         │ Tank outlet and connecting pipe
         ▼
    ┌───────────┐
    │   D-BOX   │
    │ inlet  →  │
    └─┬────┬────┘
      │    │
      │    └──────── Outlet pipe ────────► Drain-field lateral
      │                                      in treatment soil
      │
      └───────────── Outlet pipe ────────► Drain-field lateral
                                             in treatment soil

A diagram is useful for understanding the system, but the property’s approved as-built drawing is more important. A generic illustration cannot establish where a buried component is located or what configuration was approved for a specific site. The as-built may also show a pump tank, reserve area, dosing equipment, or other components omitted from a simplified diagram.

Why level outlets and balanced flow matter

In a basic gravity D-box, wastewater follows the lowest available route. If the box settles and one outlet becomes lower than the others, that outlet can capture a disproportionate share of the incoming effluent.

Consider a box feeding three laterals. When the relevant outlet elevations match the design, incoming flow can be divided across the field. If settlement lowers the outlet to the first lateral, much of each inflow may take that route before the liquid rises enough to reach the other outlets. The first lateral may remain heavily loaded while the other two receive relatively little flow.

That imbalance can create two simultaneous problems:

• Excessive loading in one area: The favored lateral and surrounding soil must accept more effluent.
• Underuse elsewhere: Other parts of the approved absorption area contribute less than intended.

Localized saturation above the heavily loaded lateral may appear as wet ground, standing water, or unusually vigorous vegetation. The pattern suggests uneven performance, but it does not establish why that imbalance exists.

A box that looks level also is not proof that the system is distributing correctly. Performance can still be affected by:

• Outlet openings set at different elevations
• Sludge, grease, roots, or debris at an opening
• A damaged or partially collapsed outlet pipe
• A disconnected pipe joint
• Downstream resistance in a blocked or saturated lateral
• An inlet arrangement that favors one flow path
• An unsuitable replacement box or mismatched fitting

“Equal flow” also is not a rule that can be transferred blindly to every onsite system. Pumped pressure distribution, dosing arrangements, hillside installations, alternating fields, and other engineered designs may use different hydraulic logic. The goal is conformance with the approved design—not forcing every visible outlet to behave like a simple residential gravity box.

Warning signs—and why they do not diagnose the box

Possible warning signs of a septic or plumbing problem include:

• Wet, soft, or saturated ground near the field
• Standing water over a lateral or near the D-box
• Unusually green or fast-growing vegetation over one part of the field
• Sewage or septic odors indoors or outdoors
• Slow household drains
• Gurgling fixtures
• Wastewater backing up into the house
• Uneven drainage or visibly uneven outlet flow
• A field area that remains wet after ordinary rainfall has passed

These signs are nonspecific. A slow sink may have a local fixture obstruction. Multiple slow fixtures may point to a problem farther downstream. A backup can result from a blocked house sewer, a tank problem, damaged connecting pipe, D-box defect, pump fault, or a field that no longer accepts effluent. Wet ground can reflect septic discharge, groundwater, stormwater, irrigation, or another site-drainage issue.

Use the following matrix to organize the next step without turning a symptom into a diagnosis:

Localized wetness over one portion of the field is consistent with uneven loading, but it is not proof that the box is at fault. A broken pipe beyond the box or soil that has lost absorption capacity can create a similar pattern.

Sewage backing up or surfacing outside warrants prompt attention. Sewage can contain organisms that cause illness, and septic inspection can expose people to additional hazards. Keep children and pets away, minimize water use, and do not attempt to open or excavate components while wastewater is surfacing. The Washington septic inspection field guide identifies infectious organisms, hazardous gases, and electrical shock among the potential risks of septic inspection and directs homeowners to stop when they cannot proceed safely.

Before agreeing to replace the entire absorption area, ask which component was actually found defective. DrainFinder’s drain-field replacement planning guide recommends obtaining a written diagnosis and determining whether a tank, pipe, pump, or distribution-box problem could support a more targeted repair.

What can go wrong inside and around a D-box

Distribution-box problems generally fall into three categories: movement, obstruction, and structural or connection failure. More than one condition can occur at the same time.

Movement and misalignment can result from soil settlement, erosion, shifting support, groundwater movement, or disturbance during earlier work. The entire box may tilt, or a pipe connection may shift independently. Even if the box remains intact, altered elevations can change which outlet receives flow first.

Obstructions can include sludge, grease, roots, or other material at the inlet or outlets. Solids reaching the box may also point to an upstream problem involving the tank or its outlet. Removing material from the box without identifying its source can allow the condition to recur.

Structural defects include cracks, deterioration, wall or lid failure, collapse, and damaged pipe penetrations.

External loading is another concern. Unless the system was designed for those loads, the septic area should not be treated as a traffic or storage zone.

The observed condition determines the possible repair path.

1. Inspect

The first step is to establish what is wrong. Inspection should address the box’s structure, alignment, inlet, outlets, connections, accumulated material, and relationship to downstream conditions. It should also consider why the defect occurred.

Finding a tilted box, for example, does not explain whether settlement is continuing or whether an overloaded lateral has suffered separate damage.

2. Clean or clear

A structurally sound box with an accessible obstruction may be a candidate for professional cleaning or clearing. That does not prove the laterals are open or the soil is functioning. If solids repeatedly appear, the tank and upstream piping also need evaluation.

Cleaning should not be presented as a guaranteed way to restore the field. The obstruction may be only one part of a larger problem.

3. Reposition or adjust

A sound box that has shifted may sometimes be reset, stabilized, or adjusted. Flow-control fittings may also be serviced or set where they are approved parts of the system.

Leveling the visible box without checking outlet elevations and downstream resistance does not establish balanced performance.

4. Replace

A cracked, deteriorated, collapsed, unsuitable, or irreparably misaligned box may require replacement. The new product must match the approved use and connection geometry.

Replacing the box does not rehabilitate a lateral or absorption area with an independent problem. A qualified local septic professional should select among inspection, cleaning, adjustment, repair, and replacement after evaluating the property.

How professionals evaluate the complete flow path

A sound evaluation begins with records rather than blind excavation. Useful documents include:

• The approved septic design
• The property’s as-built drawing
• Permit and inspection records
• Pumping and maintenance history
• Previous repair invoices
• Soil or site-evaluation documents
• Manufacturer information for proprietary components
• Notes about earlier wet areas, backups, or construction activity

The local health department or onsite-wastewater authority may have records showing the tank, D-box, field, reserve area, pumps, and other components. Actual field conditions can differ from old drawings, but records provide a safer starting point than random probing or digging.

A bounded professional assessment may include the following:

1. Confirm the system type. Determine whether distribution is conventional gravity, pumped pressure, gravity dosing, or another approved configuration.
2. Locate the tank and distribution component. Compare available records with field observations and identify possible alterations.
3. Review the septic tank. Consider liquid and solids conditions, baffles, filters, and evidence that solids may have moved downstream.
4. Evaluate the connecting pipe. Look for blockage, sagging, breakage, root entry, leakage, or unsuitable alignment between the tank and box.
5. Inspect the box structure. Check the lid, walls, base, penetrations, and evidence of cracks, erosion, deterioration, shifting, or collapse.
6. Look for obstructions. Examine the inlet and outlets for sludge, grease, roots, or displaced components.
7. Verify alignment and elevations. Determine whether the box and relevant outlet elevations correspond to the intended arrangement.
8. Observe distribution where appropriate. Assess how flow reaches the outlets rather than relying solely on a static visual check.
9. Evaluate pipe connections. Confirm that connected lines are intact and correctly positioned.
10. Consider downstream conditions. Determine whether individual laterals or the absorption area show ponding, damage, blockage, or uneven performance.

The evaluation should not stop merely because an obvious D-box defect is found. A tilted box may be real, but the heavily loaded lateral may also be damaged. Conversely, unexpectedly high liquid in the box may result from downstream saturation rather than a blockage inside the box.

Ask for a written diagnosis that states:

• What was inspected
• What defect was observed
• How the defect was verified
• Whether other components were evaluated
• What repair is proposed
• Why clearing, adjustment, repair, or replacement is appropriate
• Whether downstream damage remains possible
• What permits, inspections, or design revisions apply

If a contractor recommends drain-field replacement, ask whether the D-box and tank-to-field pipe were exposed or otherwise evaluated. If the field does require replacement, confirm whether the proposal includes a new distribution box, reconnection of every required outlet, treatment of abandoned components, testing, and site restoration. A quote may exclude these items even when the project requires them.

How to select a replacement without guessing

The approved system design—not an online outlet-count filter—is the starting point for replacement selection. A retail listing can show that a box exists; it cannot establish that the product is hydraulically, structurally, or legally suitable for a particular property.

Use this checklist when reviewing a proposed box:

• Intended use: Is it documented for septic-effluent distribution rather than general landscape drainage or stormwater collection?
• Local acceptance: Is the exact model allowed or approved by the relevant authority?
• Overall dimensions: Can it fit the approved location while preserving required pipe geometry and access?
• Material: Is it suitable for the anticipated handling, burial conditions, loading, groundwater, and site conditions?
• Inlet count and position: Which opening receives flow, and where is it located?
• Outlet count and position: How many active laterals must be connected, and where are those connections?
• Unused openings: Can they be closed by an approved method?
• Pipe compatibility: Do the pipe diameter, connection type, seals, adapters, and manufacturer details match?
• Required elevations: Can the inlet and outlets be set to the elevations specified by the design?
• Flow-control provisions: Are fittings required, allowed, or prohibited?
• Lid and riser arrangement: Is the cover appropriate for the intended access and burial conditions?
• Service access: Can the component be inspected without unsafe or destructive excavation?
• Loading conditions: Will the location be exposed to pedestrians, landscaping activity, vehicles, or machinery?
• Groundwater and buoyancy: Could a lightweight box move, and what installation method does the manufacturer specify?
• Sealing: How are penetrations, unused openings, lids, and risers secured?
• Installation documentation: Are manufacturer instructions available for support, connection, backfill, loading, and access?
• Inspection requirements: What must be verified before burial?
• Design correspondence: Does each connection match the approved lateral layout?

Do not assume that the number of visible openings equals the number of usable outlets. One opening may be the inlet. Others may be unused connection positions, knockouts, or openings intended for another arrangement. A product described as “four-hole” does not automatically serve a particular number of laterals without confirmation from its documentation and the approved design.

Concrete, high-density polyethylene, polypropylene, and fiberglass products all appear in commercial listings. The available evidence does not establish a universally superior material or universal service life. Compare materials through site-specific questions:

• Can the box tolerate anticipated loading?
• How will it be transported and placed without damage?
• Can pipe penetrations be sealed as required?
• Is high groundwater a concern?
• What support or anchoring does the manufacturer require?
• Is the material and exact model accepted locally?
• Will future access expose the lid or walls to damage?
• Are compatible fittings available?

Market listings illustrate why outlet count alone is a poor selection tool. Supplier catalogs include compact four-hole plastic boxes, a seven-hole HDPE product, and 12- and 14-port concrete products. The VAMAC distribution-box catalog also mixes boxes with lids, risers, grates, and other drainage-related items, so a category listing does not establish septic suitability.

Large precast configurations also exist. One manufacturer lists products with several configurations, including a model with as many as 21 outlets. That number demonstrates product variety; it is not a sizing recommendation for a home. The manufacturer’s precast distribution-box listing should be read as a catalog rather than a design rule.

Do not substitute a general drainage or stormwater box merely because it has similar dimensions. Require documentation showing that the exact product is intended and accepted for the septic application.

Gravity, dosing, hillside, and pressure distribution are not interchangeable

A conventional gravity D-box is passive. Effluent enters from the septic tank and leaves through outlets connected to the drain field. There is no pump creating pressure throughout the lateral network.

A pressure-distribution system is different. It uses a pump and associated equipment to deliver wastewater through a designed network. A standard passive box should not be substituted for pressure-distribution equipment simply because both systems send wastewater toward multiple field lines.

Gravity-operated dosing is another distinct category. Rewatec describes a product in which effluent accumulates in a reservoir and an internal dosing device releases a measured batch into an exit chamber. The manufacturer says the chamber can serve up to seven outlets and that the unit operates by gravity without electricity or mechanical parts. These are product-specific manufacturer statements, not proof that the unit is suitable for every gravity system; see the Rewatec dosing distribution-box description.

Retailer catalogs also include products labeled for “hillside” use. That label alone does not explain the engineering criteria, required slope, connection arrangement, hydraulic capacity, or local approval. It should not be interpreted as permission to choose a box merely because the yard slopes.

For any nonstandard configuration, confirm:

• The approved distribution method
• Ground and pipe elevations
• Slope between components
• Soil and groundwater conditions
• Required dosing volume or operating level
• Pump and control requirements, if applicable
• Lateral layout
• Manufacturer design limitations
• Local product approval
• Required professional design or inspection

A “dosing” or “hillside” label is not a substitute for those answers. Promotional claims about extended field life, operation in all conditions, or lack of maintenance should not be treated as universal guarantees.

Replacement cost, safety, permits, and the limits of DIY work

A damaged distribution box may be replaceable without replacing the septic tank or entire drain field. That possibility depends on a wider evaluation showing that the connecting pipes, laterals, absorption area, and approved design remain suitable.

Do not estimate the project by looking only at the box price. A complete quote may need to address:

• Records review and component location
• Diagnostic inspection
• Tank pumping, if needed for the assessment or work
• Utility locating
• Excavation and controlled access
• Removal or approved abandonment of the old box
• The replacement box
• Lid, riser, seals, adapters, and flow-control fittings
• Support or bedding correction
• Inlet reconnection
• Every required outlet reconnection
• Elevation correction
• Repair of damaged connecting pipe
• Design or engineering work
• Permit and application fees
• Required inspection or testing
• Backfill
• Topsoil, seed, sod, hardscape, or other restoration
• Warranty and return-visit terms

In retailer listings reviewed on July 30, 2026, selected small products were displayed at $61.55, $65.83, and $87.00 on Tank Depot’s distribution-box category page. These are volatile online component prices—not installed-cost benchmarks—and they exclude labor, excavation, fittings, permits, inspection, and restoration.

A second retailer listing reviewed on July 30, 2026 displayed two Polylok four-hole variants at $72.50 each: one with a grate cover and one with a solid cover. The different product descriptions reinforce the need to verify intended use rather than treating similarly shaped boxes as interchangeable. Prices, shipping terms, and availability can change.

Many larger boxes are listed as call-for-price products. Even when a small box can be purchased online, it may be one of the least expensive parts of the completed repair. Incorrect elevations, incompatible connections, an unsuitable cover, or an unapproved product can make a low-cost purchase expensive.

Why this is usually not a homeowner replacement project

Opening or excavating septic components can expose a person to sewage, harmful gases, electrical equipment, excavation hazards, and damage to buried system lines. Improper access can also disturb the box elevation, break a lateral, or place machinery over the absorption area. Commercial septic guidance identifies contamination, gases, excavation, diagnostic, and compliance risks as reasons to reserve D-box access and repair for qualified professionals.

Keep children, pets, and bystanders away from exposed tanks and boxes. If there is any doubt about safe access, stop and contact a qualified professional; government homeowner guidance likewise directs owners to stop when they cannot inspect a system safely.

Stop and seek professional help if:

• The component cannot be confidently located
• The system type is uncertain
• Sewage is backing up or surfacing
• A lid or structure appears unstable
• Excavation would be deep, unsupported, or near utilities
• Connected pipes cannot be identified
• Pumps, controls, or electrical equipment are involved
• The approved design cannot be found
• Site conditions differ materially from the records
• The work could disturb the drain field or reserve area

Permit, inspection, approved-product, designer, and contractor requirements vary by jurisdiction. In Washington, for example, the state homeowner field guide says septic repairs require a permit and a licensed professional under applicable state and local requirements; rules elsewhere may differ. Contact the local health department or onsite-wastewater authority before work begins. A retailer video or generic installation article cannot establish the legally or technically correct procedure for a particular property.

The final decision sequence is straightforward:

1. Confirm the system type and obtain the as-built records.
2. Treat symptoms as evidence of a broader septic problem, not proof of D-box failure.
3. Obtain a written evaluation covering the tank-to-field flow path.
4. Identify whether the appropriate path is clearing, adjustment, targeted repair, or replacement.
5. Compare any proposed box with the approved design, connection elevations, site conditions, manufacturer documentation, and local requirements.
6. Verify the complete quoted scope before authorizing work.

The cheapest visible box is not necessarily the correct one. Just as importantly, identifying a repairable D-box or connecting-pipe problem before approving drain-field replacement can materially change what must be excavated and replaced.

Frequently asked questions

Does every septic system have a distribution box?

No. Conventional gravity systems commonly use a D-box between the septic tank and drain-field laterals, but not every gravity arrangement necessarily has a conventional box. Pressure-distribution systems use a pump and different distribution equipment. Confirm the system type from its approved records or through a qualified onsite evaluation.

Can a distribution-box problem look like drain-field failure?

Yes. A low outlet, obstruction, damaged connection, or shifted box can overload one part of the field and contribute to wetness, odors, slow drainage, or backups. Those same symptoms can result from a tank problem, broken pipe, blocked lateral, high groundwater, or loss of absorption capacity in the soil. Diagnosis should cover the complete system before field replacement is approved.

Can a septic distribution box be replaced without replacing the whole system?

It can be possible if inspection confirms that the defect is limited to the box and that the tank, connecting pipes, laterals, absorption area, approved design, and regulatory conditions permit a separate replacement. A box may instead be cleaned or repositioned in some circumstances. Separate replacement is not appropriate when downstream components have independent damage or the design must be revised.

How many outlets should my septic distribution box have?

The correct number is determined by the approved design and lateral layout—not a generic bedroom, occupant, or product-hole formula. Confirm which opening is the inlet, which openings are active outlets, how unused positions must be treated, and whether flow-control fittings are required. Pipe sizes, outlet positions, and elevations matter as much as the total count.

How much does a septic distribution box cost?

The box alone may be inexpensive relative to the completed repair, but online product prices are not reliable installed-cost estimates. Total cost depends on locating and exposing the component, the box and fittings, pipe reconnections, elevation correction, labor, pumping if needed, permits, inspections, backfill, and restoration. Ask for a written, itemized scope and confirm whether downstream pipe or drain-field work is included.
